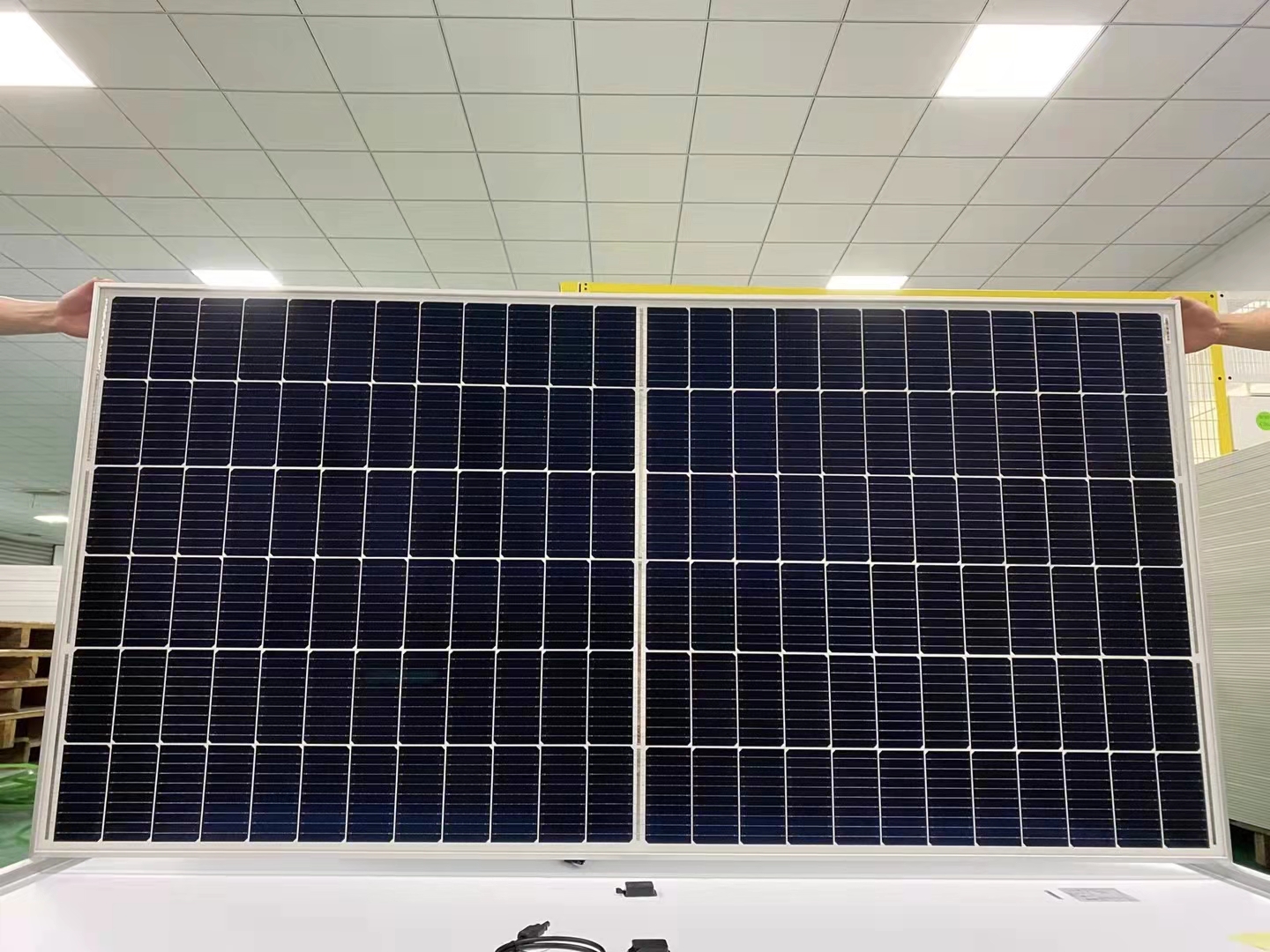

Ai Power Solar Panel 450w Monocrystalline Perc 144 Half Cells Solar Panels

Name: Ai Power Solar Panel 450w Monocrystalline Perc 144 Half Cells Solar Panels
Brand: Ai Power
Price: 60 USD

China Ai Power Solar Panel 450w Monocrystalline Perc 144 Half Cells Solar Panels wholesale

Brand Name : Ai Power

Model Number : ASP

Certification : ISO, CE, SONCAP

Place of Origin : China

MOQ : 100

Price : USD60 to USD200 per unit

Supply Ability : 1000 sets per month

Delivery Time : 2-4weeks

Packaging Details : carton

Battery Type : Lead-Acid

Mounting Type : Ground Mounting, Roof Mounting

Output Frequency : 50~60HZ

Output Voltage (V) : 110v/220v

Solar Panel Type : Monocrystalline Silicon, Polycrystalline Silicon

Controller Type : MPPT Solar Controller

Certificate : ISO, CE, ROHS

Contact Now

AI POWER SOLAR PANEL 450W MONOCRYSTALLINE PERC 144 HALF CELLS SOLAR PANELS WHOLESALE PRICE

Product Description

External Dimenson	2094103835mm
Weight	23.5kg
Solar Cells	PERC Mono 166*83 (144pcs)

144 CELLS ELECTRICAL DATA(STC)

Model Number	440W		445W		450W		455W
Testing Condition	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power (pmax/W)	440	328.6	445	332.3	450	336.1	455	339.8
Open Circuit Voltage (Voc/V)	48.9	45.8	49.1	46.0	49.3	46.2	49.5	46.4
Short Circuit Current (Isc/A)	11.46	9.27	11.53	9.33	11.60	9.38	11.66	9.43
Voltage at Maximum Power (Vmp/V)	41.1	38.3	41.3	38.5	41.5	38.6	41.7	38.8
Current at Maximum Power (Imp/A)	10.71	8.59	10.78	8.64	10.85	8.70	10.92	8.75
STC (Standard Testing Conditions): Irradiance 1000W/㎡, Cell Temperature 25℃, Spectra at AM1.5
NOCT (Nominal Operating Cell Temperature): Irradiance 800W/㎡, Ambient Temperature 20℃, Spectra at AM1.5, Wind at 1m/s

Details Images

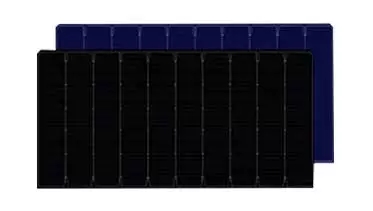

Mono Half Cut Cell*Grade A PID resistance solar cell*Optimized by BOM selection
*Laser accurately cut 9BB 10BB 12BB

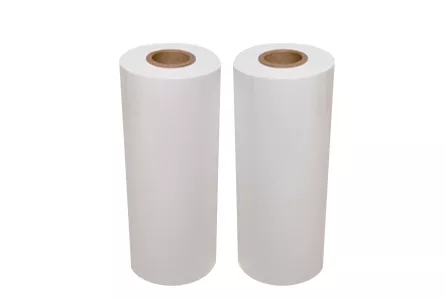

EVA Sealed Film*Top brand EVA sealed film in China *Resistance in outdoor use *Sealed durability more than 30 years

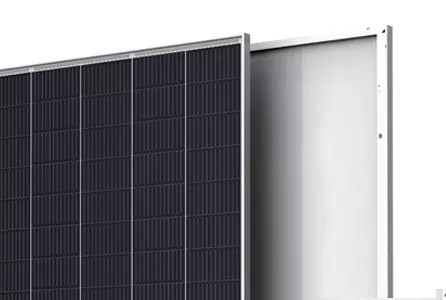

Aluminum frame*Heavy thickness anodized Alu.Alloy.
* Salt spay test passed
 *With standard installation holes

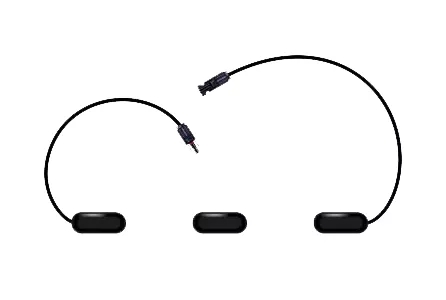

Junction Box
 *Waterproof grade IP68 *Heat dissipation performance
* low loss, long service life.

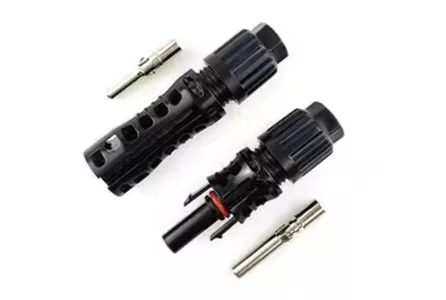

Compatible MC4 Connectors
 *Universal MC4 PV connector,* TUV Certificate.
 * IP 68

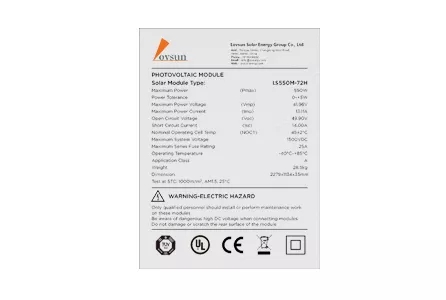

Label
 Wet and dry resistance silver label.OEM brand accepted.

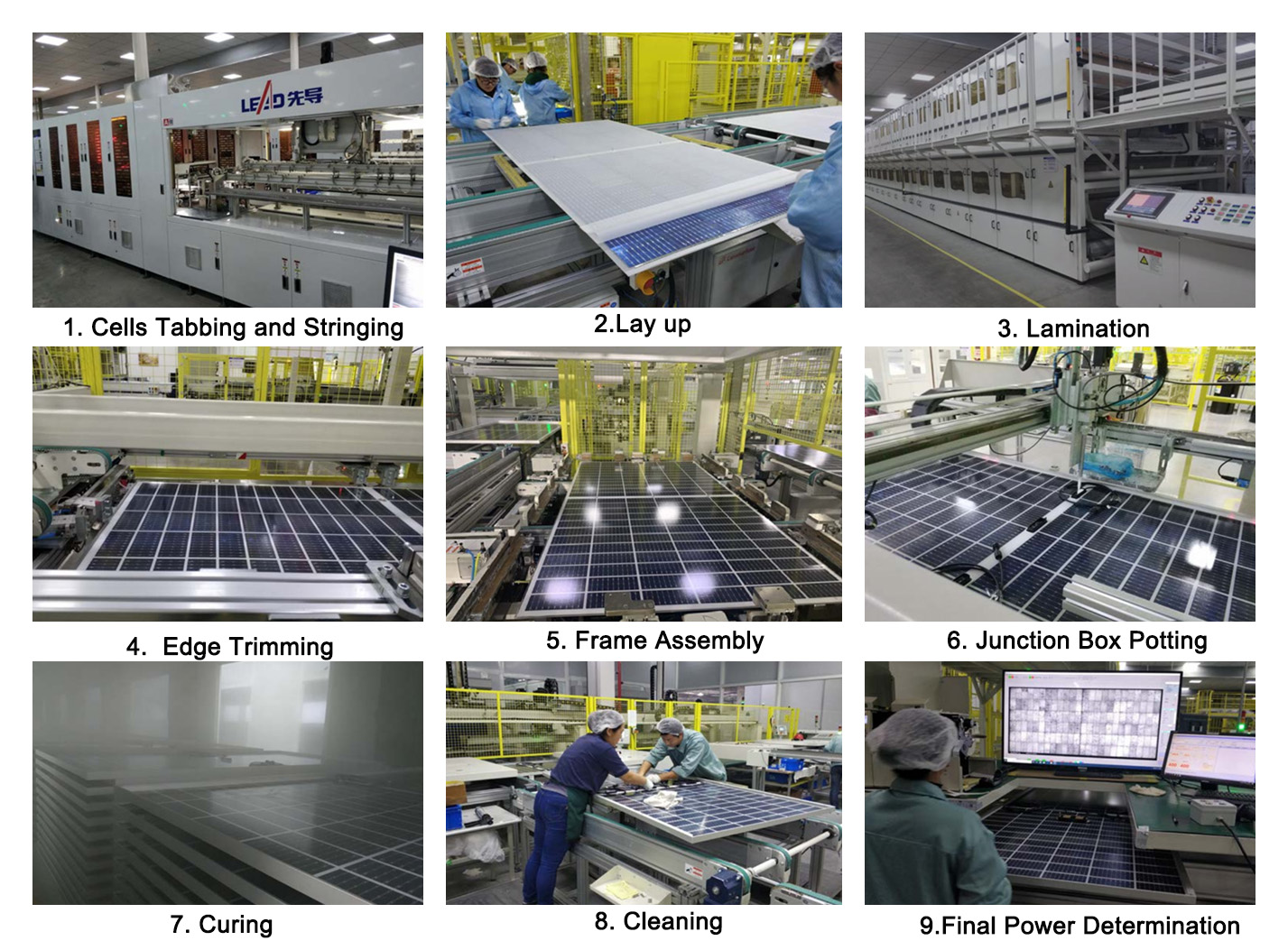

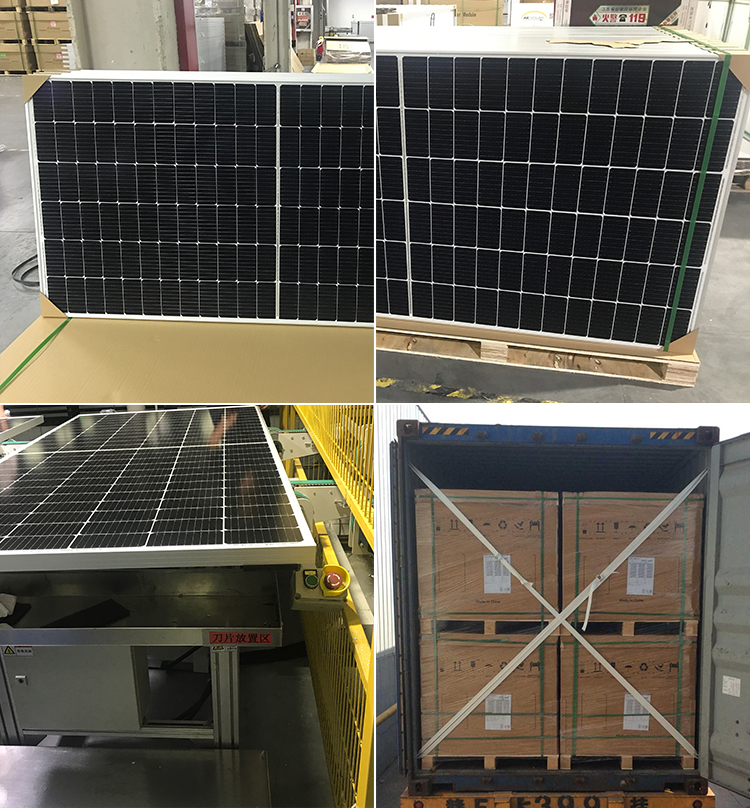

Produce Line&Packing

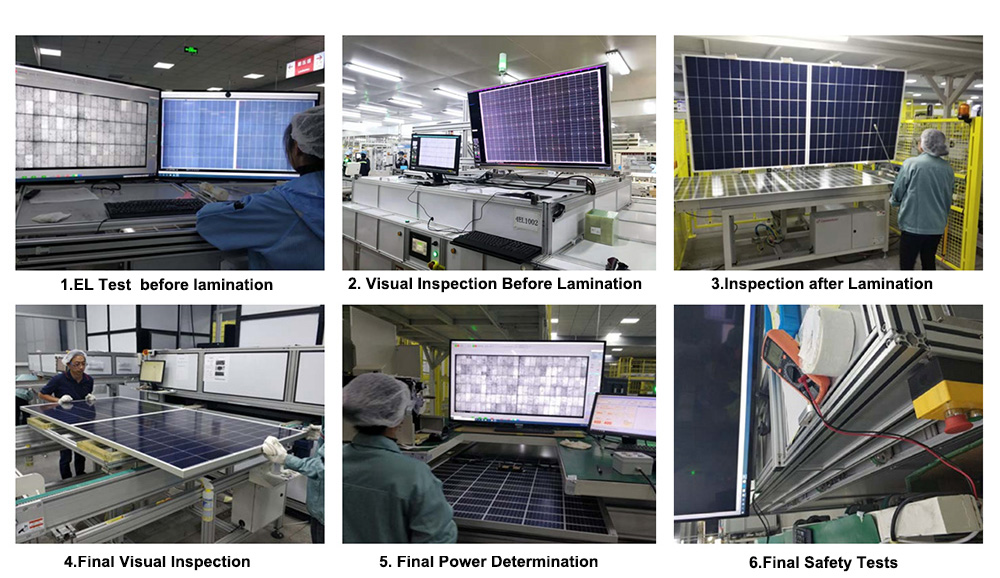

Quality Control

Pack&shipping

RFQ

1.Do you accept small orders?
 A: Yes, for the initially small orders are acceptable.

 2: What kind of service can you provide ?
 A: After we received the order, we will arrange the production, our QC members will control the quality from the raw material till the final products. We can arrange the shipment by sea, air or courier company. Meanwhile, as our staff worked in this fields in many years, we could also can provide you one-stop solution for solar energy system in a perfect way.

 3:Can you customize the products as per our request?
 A: Yes, we do OEM and ODM orders.

 4:Why do I choose your company?
 A: We hold the idea that we provide reliable products and valuable services to help our customers have a growing and profitable business. Thanks giving is the core culture of our company!
